60pcs C Grade 440w Stock Solar Panels For Household

Product Categories

Suzhou Jun Hui Import and export trade Co., Ltd.

Contact Now

60pcs C Grade 440w Stock Solar Panels For Household

Ask Lasest Price
Brand Name :	Yingli/Jinko
Certification :	CE,TUV
Price :	Negotiation
Payment Terms :	T/T、L/C、West Union, D/P
Supply Ability :	5000000 Watt/Watts per Month
Delivery Time :	Shipped in 7 days after payment

Add to Cart

Product Details
Company Profile

60pcs C Grade 440w Stock Solar Panels For Household

C Grade Factory Stock Goods Solar Panels for for Pakistan Market

Product Description

A grade 4400w pv module poly solar panel for Australia

10 Years Factory Manufacture Experience With TUV,CE,ISO,CQC Certifications.
300MW/year Production Capacity,Export more than 25 countries.
16 - 17% cell efficiency in Motech/Gintech or other famous brands.
10 Years Warrange For The 90% Module Efficiency
20 Years Warrange For The 80% Module Efficiency
24 hours after-sale in time service,Parts of countries has office and service engineer.

PRODUCTS CHARACTERISTICS

POLY SOLAR PANEL-260W-275W ELECTRICAL CHARACTERISTICS
Minimum performance at stc1
Item	260-6PB	265-6PB	270-6PB	275-6PB
Cell Type	Poly	poly	Poly	Poly
Model No.	MP-260-6PB	MP-265-6PB	MP-270-6PB	MP-275-6PB
Maximum Power(Wp)	260	265	270	275
Maximum Power Voltage(V)	30.9	31.1	31.3	31.6
Maximum Power Current(A)	8.42	8.53	8.63	8.71
Open Circuit Voltage(V)	38	38.3	38.5	38.8
Short Circuit Current(A)	8.72	8.83	8.94	9.02
Solar Panel Efficiency	16.23%	16.49%	16.75%	17.01%
Power tolerance	± 3%	± 3%	±3%	± 3%
Standard Test Condition	Irradiance 1000W/M2, Cell Temperature 25ºC, Air Mass 1.5

TEMPERATURE CHARACTERISTICS
NOCT(Nominal Operating Cell Temperature)	44°C (±2°C)
Temperature Coefficient of Pmax	-0.41%/°C
Temperature Coefficient of Voc	-0.32%/°C
Temperature Coefficient of Lsc	0.05%/°C
Maximum Systerm Voltage	1000VDC(IEC)
Max Rated Current	15A
Operating Temperature	-40ºC~+85ºC

MECHANICAL PARAMETERS
Number of Cells(Pcs)	60(6*10)	60(6*10)	60(6*10)	60(6*10)
Frame	Anodized Aluminium Alloy	Anodized Aluminium Alloy	Anodized Aluminium Alloy	Anodized Aluminium Alloy
Dimension(mm)	164099235mm	164099235mm	164099235mm	164099235mm
Cell Size(mm)	156.75*156.75	156.75*156.75	156.75*156.75	156.75*156.75
Output tolerance	±5%	±5%	±5%	±5%
Weight(kg)	18.6	18.6	18.6	18.6
Warranty	10 year product warranty,25 year linear power guarantee

DETAILS AND PRODUCTION

FACTORY WORKSHOP

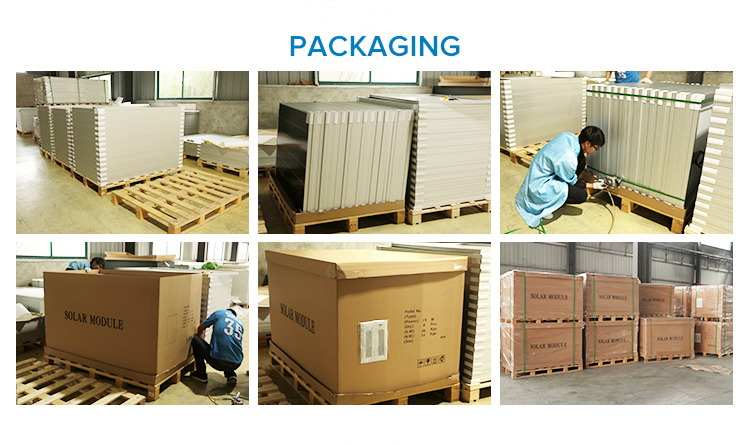

PACKING AND DELIVERY
A Grade 275W PV Module Poly Solar Panel for Australia
