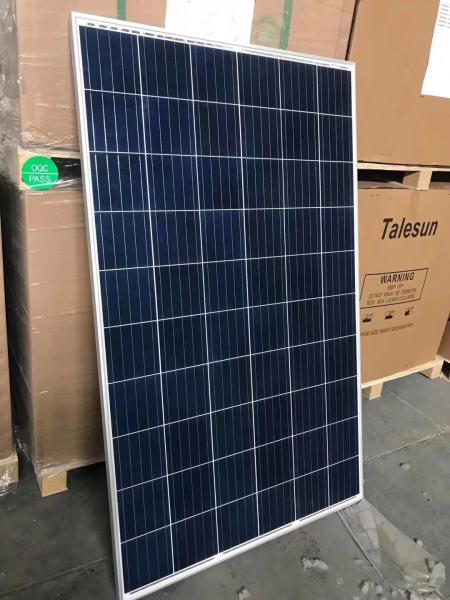

275 Watt Poly Solar Panel
Features
*Excellent low irradiance performance, PID resistance.
*Positive tight power tolerance of 3%
*Dual stage 100% EL Inspection warranting defect-free product
*Module Imp binning radically reduces string mismatch losses
*Warranted reliability and stringent quality assurances well beyond
certified requirements
*Certified to withstand severe environmental conditions
Glass
Antireflective glass
Translucency of normal luminance is increased by 2%
Module efficiency is increased by 2%
Self-cleaning function
Service life is as long as 25 years (30 years optional.
Solar Cell
High Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PID
Frame
Conventional frame
Silver or black frames are optional
Boost bearing capability and prolong service life Serrated-clip
design tensile strength
Seal-lip designglue injection
Detailed Product Description
| Name: | Poly Solar Panel | Peak Power(Pmax): | 275W |
|---|
| Open Circuit Voltage(Voc): | 38.2V | Short Circuit Current(Isc): | 9.13A |
|---|
| Max Power Voltage(Vmp): | 31.0V | Max Power Current(imp): | 8.71A |
|---|
| Production Tolerance: | 0-5W | Maximum System Voltage: | 1000V |
|---|
Advantage
- China leading solar panel module manufacturer
- Advanced technology, professional manufacture, and excellent
quality.
- 100% A grade cells with ±3% power tolerance range.
- High module conversion efficiency, low module price
- Anti-reflective and high viscous EVA
Details
FAQ:
[Q:] What is a solar panel?
[A:] The solar panel cell, componets, frame, temered glass, packing
material and juction box, you can use sun to generate electricity
in a board.
[Q:] what types of solar panels, and what's difference?
[A:] Monocrystalline, polycrystalline, amorphous three kinds of
material. Among them, monocrystalline is with higher best
efficiency and prices are high, polycrystalline low efficiency of
2%, almost the price of these two life more than 25 years,
amorphous low efficiencty, short life, but the price is cheap.
[Q:] What's the standard test conditions of the solar panels?
[A:] The power of solar panel in standard conditions: Temperature
25 degree, AM1.5, the 1000W/M2 test. General use WP(peak watts)
that can also use W(watt). Power in standard test known as the
nominal power.
[Q:] How does the solar panel work?
A:The solar panels in the light of a certain intensity can produce
cerrent, connected appliance can be used. The premise that the
current generated by the unit of time is greater than the
electrical consumption. In parctical applications, this direct use
is relatively small. Are generally used by the entire system.
[Q:] Can I have the sample of solar panel?
[A:] Sure, you can order the sample for testing the quality of
solar panel, but the price of sample is difference from the large
quantity.
[Q:] Can I have my own logo on the solar panel?
[A:] Yes, OEM service is a available for us.
