Solar Lighting A Grade 72 Cells Poly Solar Panel

Suzhou Jun Hui Import and export trade Co., Ltd.
Contact Now
    Buy cheap Solar Lighting A Grade 72 Cells Poly Solar Panel from wholesalers

    Buy cheap Solar Lighting A Grade 72 Cells Poly Solar Panel from wholesalers
    • Buy cheap Solar Lighting A Grade 72 Cells Poly Solar Panel from wholesalers
    • Buy cheap Solar Lighting A Grade 72 Cells Poly Solar Panel from wholesalers
    • Buy cheap Solar Lighting A Grade 72 Cells Poly Solar Panel from wholesalers

    Solar Lighting A Grade 72 Cells Poly Solar Panel

    Ask Lasest Price
    Brand Name : Yingli/Jinko
    Model Number : 0511LDK275W
    Certification : ISO9001/CE
    Price : Negotiation
    Payment Terms : T/T、L/C、West Union
    Supply Ability : 5000000 Watt/Watts per Month
    Delivery Time : Shipped in 7 days after payment
    • Product Details
    • Company Profile

    Solar Lighting A Grade 72 Cells Poly Solar Panel

    Solar Lighting A Grade 72 Cells Poly Solar Panel


    Solar Cells


    High efficiency 5BB PV cell
    Uniform color
    Anti-PID
    Germany standard Cell
    Full test


    Junction box


    Conventional standalone edition and engineering custom edition
    Quality diode ensures module running safety
    IP67 protection level
    Heat dissipation
    Long service life


    Glass


    Antireflective glass
    Translucency of normal luminance is increased 2%
    Module efficiency is increased 2%
    Self-clean function
    Service life 25 years


    Advantage

    1. Anti-reflective and high viscous EVA
    2. High light transmission Anti-reflective glass
    3. 10-12 years product warranty, 25 years limited power warranty.
    4. Strong productive ability and quick delivery.
    Detailed Product Description

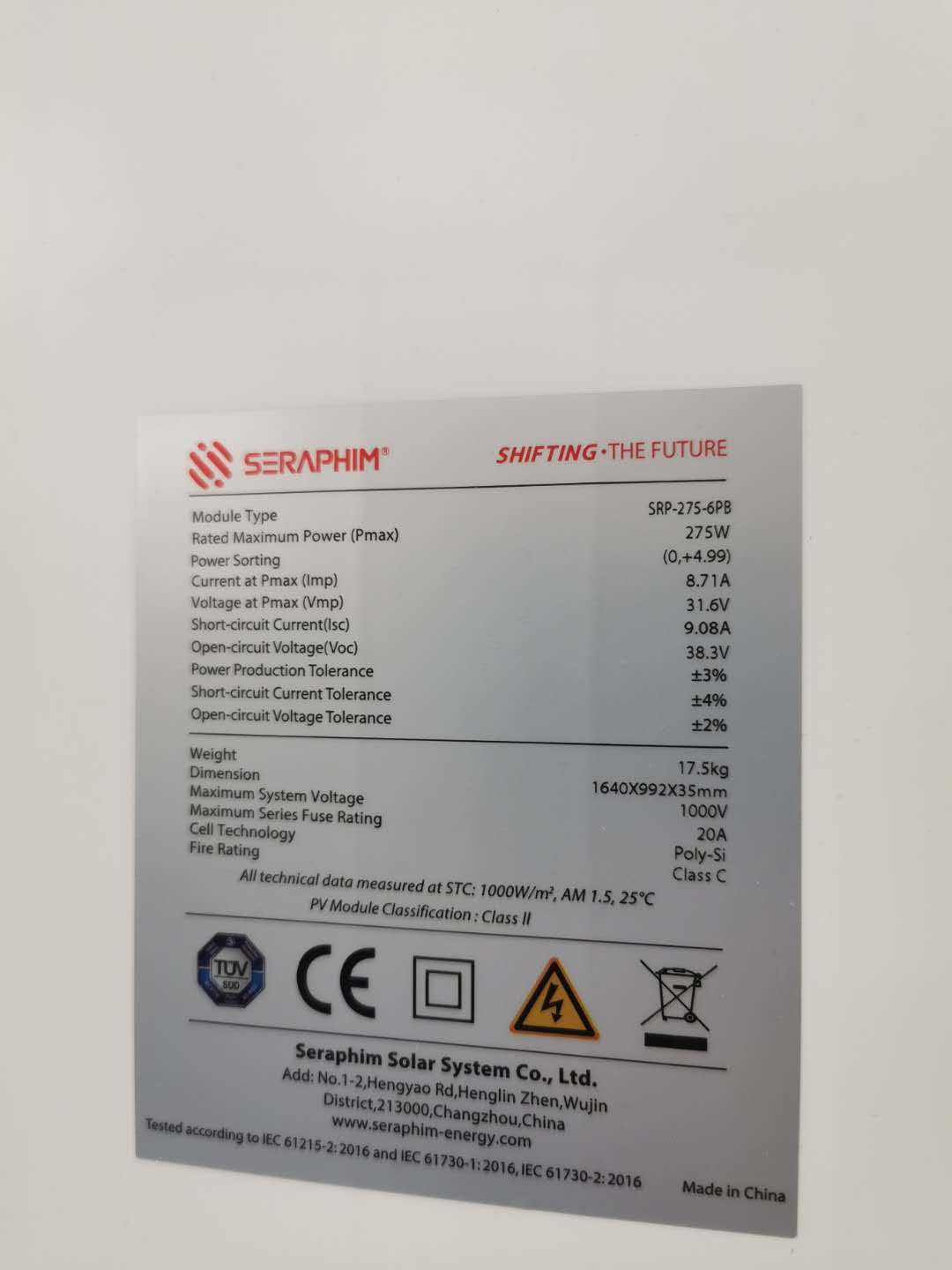

    Name:Poly Solar PanelPeak Power(Pmax):275W
    Open Circuit Voltage(Voc):38.3VShort Circuit Current(Isc):9.08A
    Max Power Voltage(Vmp):31.6VMax Power Current(imp):8.71A
    Production Tolerance:0-5WMaximum System Voltage:1000V

    Details


    FAQ:


    [Q:] What is a solar panel?
    [A:] The solar panel cell, componets, frame, temered glass, packing material and juction box, you can use sun to generate electricity in a board.
    [Q:] what types of solar panels, and what's difference?
    [A:] Monocrystalline, polycrystalline, amorphous three kinds of material. Among them, monocrystalline is with higher best efficiency and prices are high, polycrystalline low efficiency of 2%, almost the price of these two life more than 25 years, amorphous low efficiencty, short life, but the price is cheap.
    [Q:] What's the standard test conditions of the solar panels?
    [A:] The power of solar panel in standard conditions: Temperature 25 degree, AM1.5, the 1000W/M2 test. General use WP(peak watts) that can also use W(watt). Power in standard test known as the nominal power.
    [Q:] How does the solar panel work?
    A:The solar panels in the light of a certain intensity can produce cerrent, connected appliance can be used. The premise that the current generated by the unit of time is greater than the electrical consumption. In parctical applications, this direct use is relatively small. Are generally used by the entire system.
    [Q:] Can I have the sample of solar panel?
    [A:] Sure, you can order the sample for testing the quality of solar panel, but the price of sample is difference from the large quantity.
    [Q:] Can I have my own logo on the solar panel?
    [A:] Yes, OEM service is a available for us.
