Mono Crystalline Solar Cell Panel 310W For Hosehold High Transmission

Product Categories

Suzhou Jun Hui Import and export trade Co., Ltd.

Contact Now

Mono Crystalline Solar Cell Panel 310W For Hosehold High Transmission

Ask Lasest Price
Brand Name :	Yingli/Jinko
Certification :	ISO9001/CE
Price :	Negotiation
Payment Terms :	T/T、L/C、West Union
Supply Ability :	5000000 Watt/Watts per Month
Delivery Time :	Shipped in 7 days after payment

Add to Cart

Product Details
Company Profile

Mono Crystalline Solar Cell Panel 310W For Hosehold High Transmission

Mono Crystalline Solar Cell Panel 310W For Hosehold High Transmission

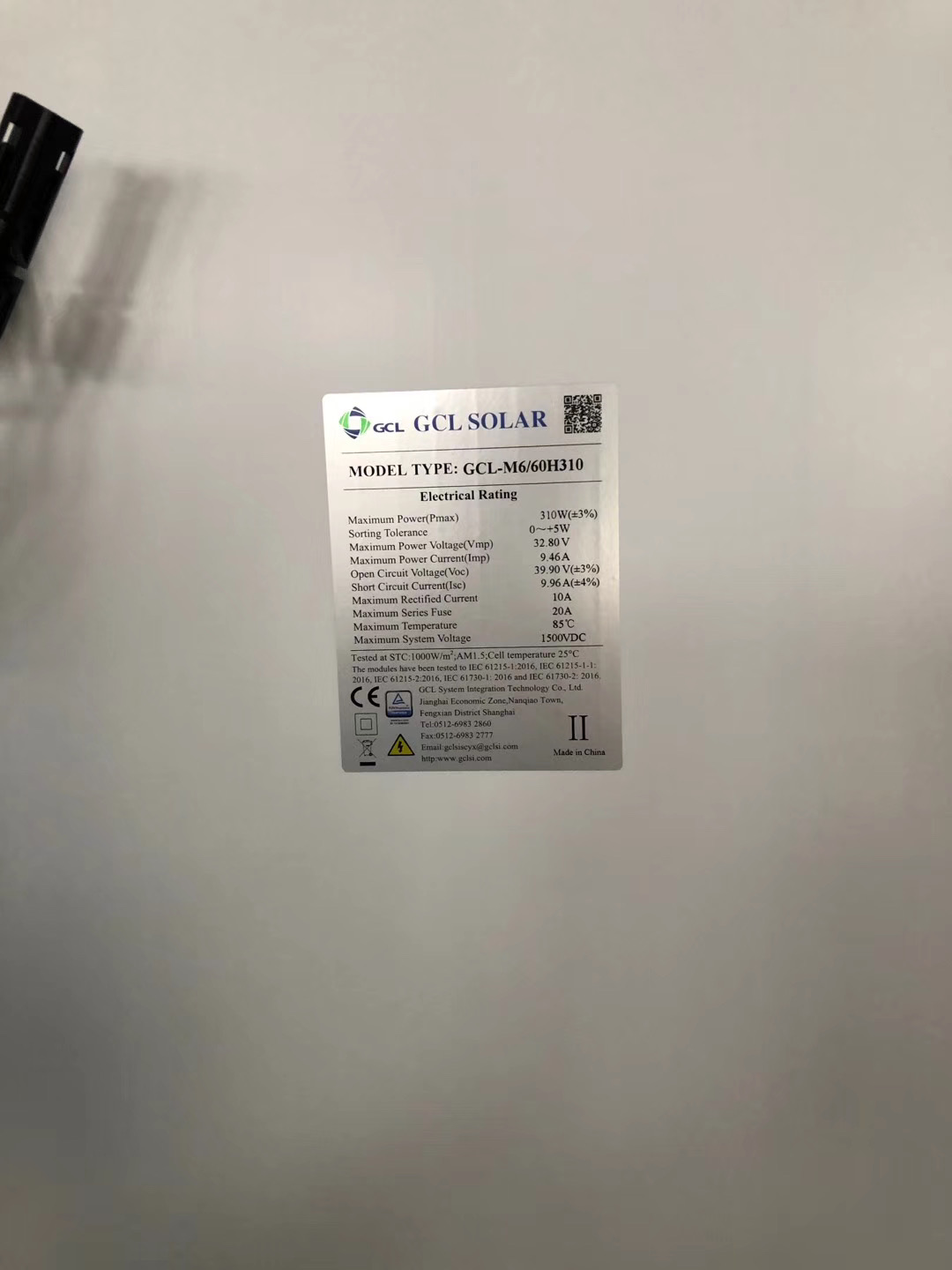

Quick Details

Maximum Power(Pmax)310W(=3%)
Sorting Tolerance0-+5w
Maximum Power Voltage(Vmp)32.80V
Maximum Power Current(lmp)9.46A
Open Circuit Voltage(Voc)39.90V(-3%)
Short Circuit Current(Isc)9.96A(4%)
Maximum Rectified Current 10A
Maximum Series Fuse 20A
Maximum Temperature 85℃
Maximum System Voltage 1500VDC

Frame

* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request

Junction Box

* Conventional standalone edition and engineering custom edition
* Quality diode ensures module running safety
* IP65 protection level
* Heat dissipation
* Long service life

Model	YS330M-72	YS335M-72	YS340M-72	YS345M-72	YS350M-72	YS355M-72	YS360M-72
Rated Maximum Power at STC	330W	335W	340W	345W	350W	355W	360W
Maximum Power Voltage (Vmp)	38.2V	38.5V	38.7V	38.9V	39.1V	39.3V	39.5V
Maximum Power Current (Imp)	8.61A	8.70A	8.79A	8.87A	8.94A	9.04A	9.12A
Open Circuit Voltage ( Voc)	46.5V	46.8V	47.1V	47.3V	47.5V	47.8V	48.0V
Short Circuit Current (Isc)	9.05A	9.15A	9.24A	9.31A	9.38A	9.45A	9.51A
Module Efficiency	17.01%	17.26%	17.52%	17.78%	18.01%	18.31%	18.57%
Power Tolerance	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5
Mechanical Parameters
Cell Type		Mono-crystalline 156x156mm (6inch)
No. of Cells		72 (6x12)
Dimension		1956x990x40/45/50mm
Glass		3.2mm, High Transmission, Low Iron, Tempered Glass
Junction Box		IP65&IP67 Rated
Output Cable		Section Size: 4mm² , Length: 900mm
Frame		Anodized Aluminum Alloy
No. of Bypass Diodes		3&6
Connector		MC4 Compatible
Working Conditions
Maximum System Voltage		DC 1000V(IEC) / 1500V(IEC) / 600V(UL)
Operating Temperature		-40°c~+85°c
Maximum Series Fuse		15A
NOCT		45±2°c
Application Class		Class A
Temperature Coefficient
Temperature Coefficient of Pmax		-0.40%/°c
Temperature Coefficient of Voc		-0.30%/°c
Temperature Coefficient of Isc		+0.05%/°c
