Portable C Grade Solar Panels , 250 Watt Solar Panel 195099040 Millimeter

Mono Solar Panel 250w Cheaper Brand New/stock/used Solar Panel

Electrical Parameter

Module	SP100-18P	SP150-18P	SP200-36P	SP250-30P	SP300-36P
Rated Maximum Power at STC	100W	150W	200W	250W	300W
Open Circuit Voltage(Voc)	21.8V	21.8V	44V	36.8V	44V
Maxinmum Power Voltage(Vmp)	17.8V	17.8V	35.6V	30.0V	35.8V
Short Circuit Current(Isc)	6.05A	9.08A	6.05A	9.00A	9.05A
Maxinmum Power Current(Imp)	5.62A	8.43A	5.62A	8.34A	8.38A
Module Efficiency(%)	17.2%	17.2%	17.2%	17.2%	17.2%
Operating Temperature	-40°C to 85°C
Maximum System Voltage	1000V(IEC)DC
Maximum Series Fuse	15A
Cont	45±2°C
Power Tolerance(W)	-0--+5W
Temperature Coefficient of isc(αlsc)	-0.03%/°C
Temperature Coefficient of voc(ßvoc)	-0.32%/°C
Temperature Coefficient of Pmax(ϒPmp)	-0.42%/°C
STC	Irrandiance 1000W/m²,Module temperature 25°C,AM=1.5

Mechanical Parameter

Weight (kg)	8	12.5	16	18.2	25
Dimensions(LWH)	120054030	148067035	158080835	165099040 mm	195099040
Cable Cross Section Size(mm²)	4	4	4	4	4
Cell (mm)	Mono 125*125	Mono 156*156	Mono 125*125	Poly 156*156	Poly 156*156
No.of Cells and Connections	36(4*9)	36(4*9)	72(6*12)	60(6*10)	72(6*12)
Junction Box	Ip67,3 diodes
Connector	Mc4 Compatible
Packaging Configuration	26 Per Pallet

.jpg

Customization

Solar panel can be customized as like the size,color or cost

Factory production

solar panels used

QA system

QA system

We conduct the following test on every solar panel.

Before Polynet Solar modules are distributed, they must undergo a broad range of specific tests that guarantee the quality of the production. This allows us to ensure that our modules meet the most stringent requirements so that you get a return on your investment.

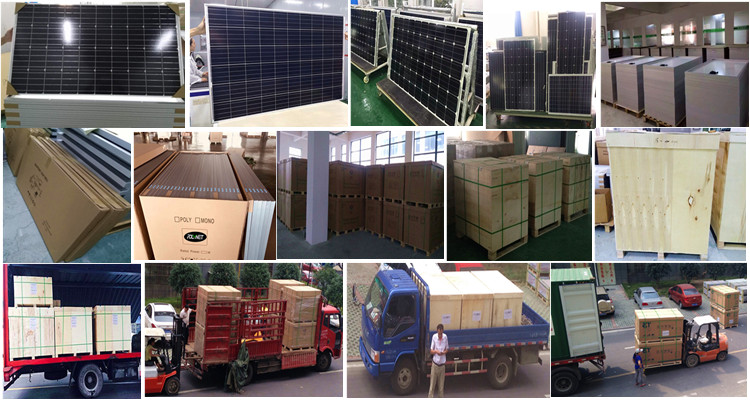

Packing & Delivery

Normally packing: 1pc/2pcs/3pcs/10pcs/21pcs/25pcs per carton

Individual packing requirement is acceptable.

solar panels used
