Stable Photovoltaic Jinko Solar Panels 1950x990x40 Mm Easy Installation

Product Categories

Suzhou Jun Hui Import and export trade Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	Yingli/Jinko
Certification :	ISO9001/CE
Price :	Negotiation
Payment Terms :	T/T、L/C、West Union
Supply Ability :	5000000 Watt/Watts per Month
Delivery Time :	Shipped in 7 days after payment

Add to Cart

Wholesale Second Hand Solar Panels Germany 300w 280w 260 Solar Panels Low Price

Product Description

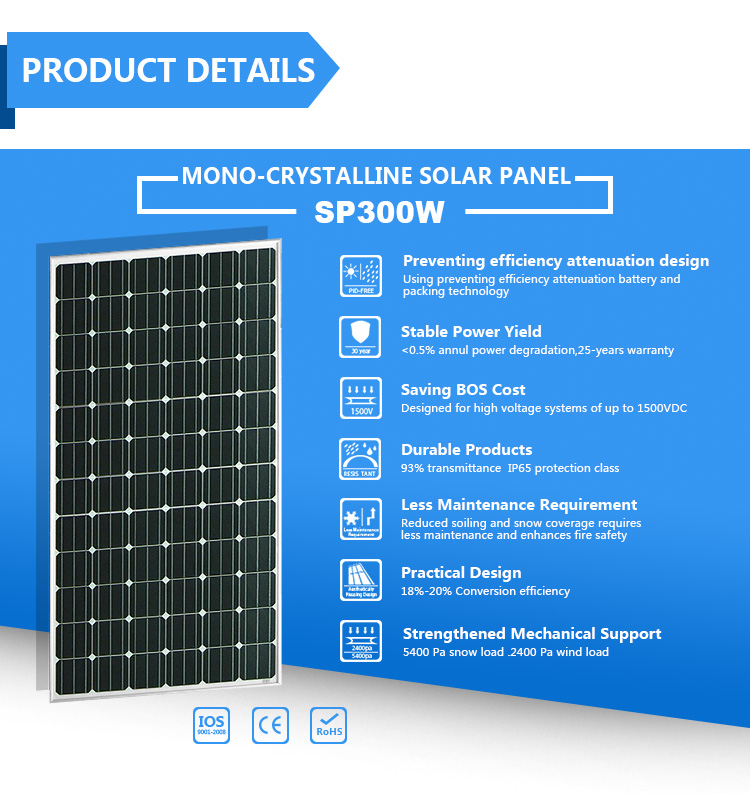

300w solar panels

Product Parameters

Cell Type	156x156mm Polycrystal ( monocrystal optional)
Cell Array	72pcs (6×12)
Module Dimensions	1950x990x40mm
Weight	25kg
Glass	3.2mm tempered glass
Junction Box	Protection class IP67
Cable	4.0mm2 photovoltaic special cable 90cm
Connector	MC4 compatiple connector

Moduel	SP-300	SP-310	SP-320	SP-330	SP-340
Rated Maximum Power at STC	300	310	320	330	340
Open Circuit Voltage(Voc/V)	45.68	45.68	46.19	46.78	46.78
Maximum Power Voltage(Vmp/V)	36.51	36.51	36.95	37.39	37.39
Short Circuit Current(Isc/A)	8.83	8.83	8.98	9.13	9.43
Maximum Power Current(Imp/A)	8.49	8.49	8.66	8.83	9.09
Module Efficiency(%)	17	19.3	19.6	20	20.1
Power Tolerance	-0~+3%
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

(250W)_04

311

Packaging & Shipping

300w packing

Packing (300w solar panel)

* Standard packing 2 pcs in one carton (20ft can put 320pcs, 40ft can put 800pcs)

* Packing in pallet optional

* OEM packing service acceptable

Our Services

project

FAQ

Hot Hot second hand solar panels 300W

Q 1. How's the delivery time ?

A. usually it will take about 5 days for the sample production,for bulk order will need around 20days.

Q 2. Tell me the standard of package?

A. For the small capacity, it use carton

Q 3.Would you accept to use our logo ?

A.If you have good quantity,it absolute no problem to do OEM.

Q 4.We want to know month capacity.

A. It depends on which model.normally is 300MW per year

Q 5. what kind of certificate you have ?

A. Our company already achieve CE certificate, TUV CQC, ISO9001
