18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry

Suzhou Jun Hui Import and export trade Co., Ltd.
Contact Now
    Buy cheap 18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry from wholesalers

    Buy cheap 18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry from wholesalers
    • Buy cheap 18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry from wholesalers
    • Buy cheap 18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry from wholesalers

    18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry

    Ask Lasest Price
    Brand Name : Yingli/Jinko
    Certification : ISO9001/CE
    Price : Negotiation
    Payment Terms : T/T、L/C、West Union
    Supply Ability : 5000000 Watt/Watts per Month
    Delivery Time : Shipped in 7 days after payment
    • Product Details
    • Company Profile

    18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry

    Product Descriptio


    280W Mono-crystalline silicon data sheet


    Model Type

    ZM-A-M-280

    Nominal Maximum Power (Pmax)

    280W

    Optimum Operating Voltage (Vmp)

    31.80V

    Optimum Operating Current (Imp)

    8.81A

    Open Circuit Voltage(Voc)

    38.00V

    Short Circuit Current(Isc)

    9.45A

    Cell Type:

    156mm x 156mm

    Cell Arrangement

    60 cells in series

    Dimensions(mm)

    1640 x 992 x 40 mm

    Frame(Material Corners,etc.)

    Anodized aluminium alloy

    Maximum Series Fuse Rating

    20A

    Number of Bypass Diode

    3

    Module Efficiency

    17.20%

    Cell Efficiency(%)

    19.20%

    Weight (KG)

    18.00KG

    Power Tolerance

    0 to +6W

    Maximum System Voltage

    DC 1000V

    Front Glass Thickness(mm)

    3.2mm

    Junction- Box

    IP67, 3 diodes

    Cable

    4mm (IEC) / 12AWG (UL), 900mm (650mm is optional)

    Connectors

    MC4 or MC4 compatible

    Temperature Coefficient (Pmax)

    -0.420% / °C

    Temperature Coefficient (Voc)

    -0.346% / °C

    Temperature Coefficient (Isc)

    0.065% / °C

    Norminal Operating Cell Temperature

    45.3 ± 2 °C

    Temperature Range

    -40°C to +85°C

    Warranty

    90% of 10 years,80% of 25 years.

    Packing

    carton or pallet

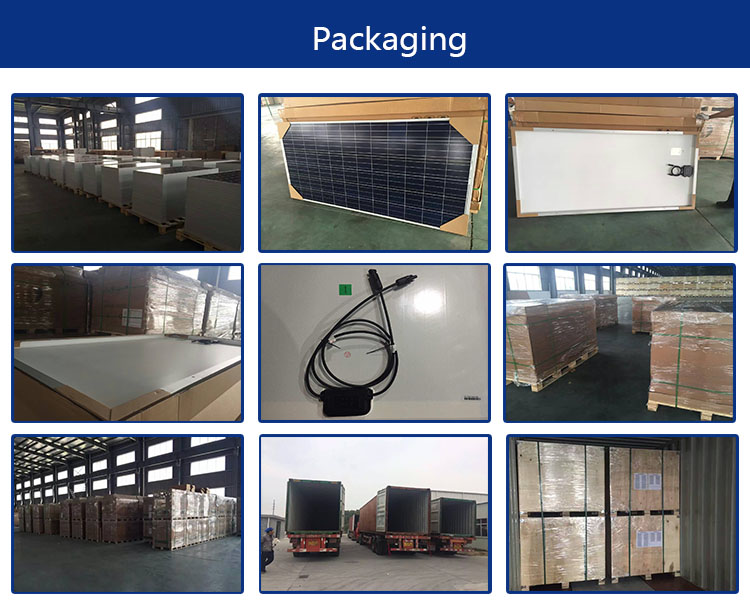

    Packaging & Shipping

    18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry18 Kg Blue Poly Solar Panel Aluminium Alloy Frame For Household / Industry

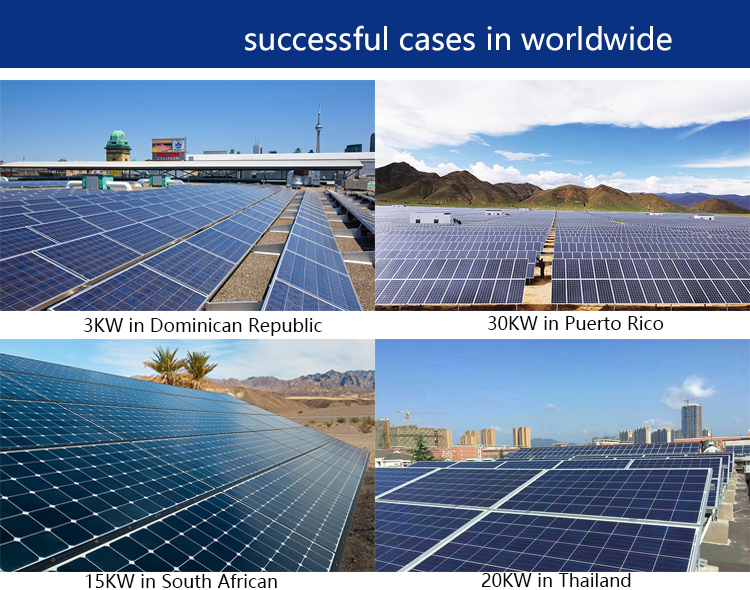

    Applications




    FAQ


    Q1. Can I have a sample order for led light?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit ?

    A: 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for led light?

    A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms the samples and places deposit for formal order.

    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on led light product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7: Do you offer guarantee for the products?

    A: Yes, we offer 2-5 years warranty to our products.

    Q8: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For

    defective batch products, we will repair them and resend them to you or we can discuss the solution i

    ncluding re-call according to real situation.
