72 Cell Jinko B Grade Solar Panels 3 % Power Tolerance 195699240 Mm

Product Categories

Suzhou Jun Hui Import and export trade Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	Yingli/Jinko
Certification :	ISO9001/CE
Price :	Negotiation
Payment Terms :	T/T、L/C、West Union
Supply Ability :	5000000 Watt/Watts per Month
Delivery Time :	Shipped in 7 days after payment

Add to Cart

Cheap Price Poly B Grade Solar Panel 280w 290w For Syria And Turkey Market

Product Description

Reliable and Good photovoltaic solar panels

Configuration of monocrystalline solar panel

Electrical Characteristics
Module Type	HP-300W-72P mono
Open Circuit Voltage (Voc)	44.8V
Optimum Operating Voltage (Vmp)	36.6V
Short Circuit Current (Isc)	9.1A
Optimum Operating Current (Imp)	8.2A
Power Tolerance	0~+3%
Maximum System Voltage	1000V
Characteristics
Size	195699240mm
Cell dimension	mono156*156mm
No.of cells	72(6*12)pcs
Weight	25kg
Junction Box	MC4 connector
Row light performance	20% higher Generating Capacity
Temperature Characteristics
Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of Pmax	-0.43%/K
Temperature Coefficient of Voc	0.04±0.015%/°c
Temperature Coefficient of Isc	-0.45±0.05%/°c
Operating temperatures	-0.32±0.02%/°c
Surface pressure	60m/s(200kg /m² )
Warranty	5 years product defect warranty
	25 years power output warranty
	90% in 10 years, 80% of 25 years

Advantages of our solar panel

1.Outstanding electrical performance under high temperature condition.

2. High efficiency, long term output stability and reliability.

3. Rigorous internal quality control, in order to meet different standards across the world.

4. Easy for installation and transportation.

5. Advanced material ensures the stable use in the severest environmental conditions.

2018 new style 72 cell photovoltaic module 300 watt 36v monocrystalline solar panel

300 watt monocrystalline solar panel,mono solar panel ,300w mono solar panel

Line of mono solar panel

photovoltaic solar panels

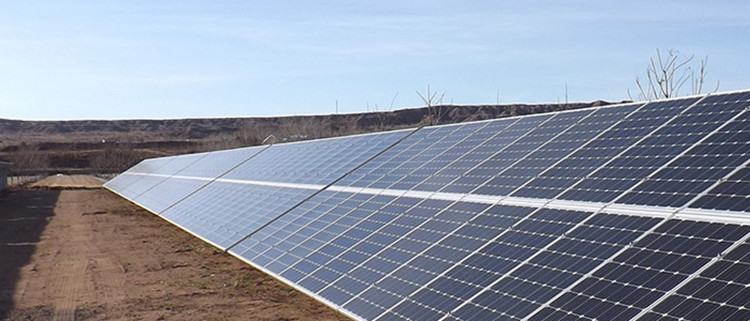

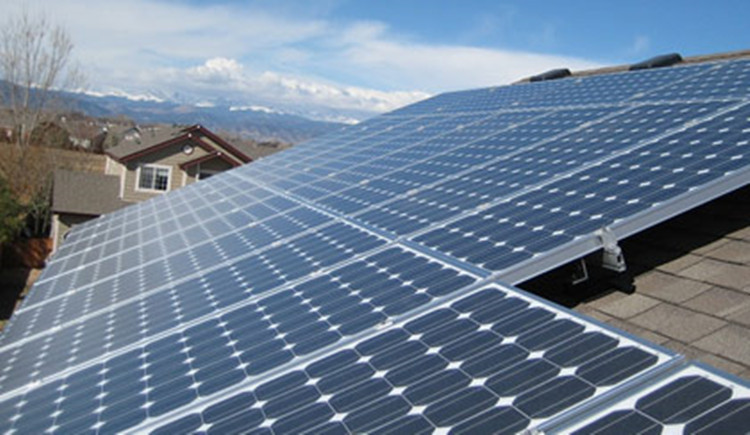

Application

photovoltaic solar panels

Packaging & Shipping

photovoltaic solar panels

FAQ

• Are you manufacturer or trading company?

we are a solar panel manufacturer & system

• What kind of certification do you have?

Power from 3W to 310W with TUV,IEC61215/CEC,CE,ISO.

• What is the warranty of solar panels?

5year warranty on material and workmanship,90% power output in 10 years,20% in 25 years.

• Can you quote me the best price?

We need more information about your demands, such as the power/material/Qty/etc,

then We can suggest the suitable type and quote the best price for you.
