    Eco Friendly Solar Pv Modules Anodized Aluminum Frame 25 Years Warranty

    Ask Lasest Price
    Brand Name : Yingli/Jinko
    Certification : ISO9001/CE
    Price : Negotiation
    Payment Terms : T/T、L/C、West Union
    Supply Ability : 5000000 Watt/Watts per Month
    Delivery Time : Shipped in 7 days after payment
    • Product Details
    • Company Profile

    Eco Friendly Solar Pv Modules Anodized Aluminum Frame 25 Years Warranty

    High Efficiency Monocrystalline Solar Panel Solar Energy Systems Uses 100w Mono Solar Cells, Solar Panels

    Product Description


    DDP Rotterdam 260W TUV CE Mcs Cec Polycrystalline Solar Module(ODA260-30-P)


    Features:


    High conversion efficiency
    Low power tolerance of 0~+3%
    Low degradation under light exposure
    Can withstand high wind-pressure, snow load and extreme temperature
    Passing IEC 61215 5400Pa mechanical load test

    Quality and Safety:


    10-year warranty on product materials and processing technology
    Power output warranty: 10 years: 90%, 25 years: 80%
    ISO 9001: 2008(Quality Management System) certified factory
    IEC61215, IEC61730, MCS CEC certified products
    TUV, CE conformity

    Applications


    On-grid residential roof-tops
    On-grid commercial/industrial roof-tops
    Solar power plants
    Off-grid system
    Other on-grid applications

    Specifications



    Model Type
    ODA260-30-P
    Peak Power(Pmax)260.00
    Maximum Power Voltage(Vmp)31.70
    Maximum Power Current(Imp)8.21
    Open Circuit Voltage(Voc)38.04
    Short Circuit Current(Isc)9.03
    Cells Efficiency()18.21
    Module Efficiency()16.01
    Maximum System Voltage(V)1000
    Maximum Series Fuse Rating(A)15
    Power Tolerance0~+3
    Pmax Temperature Coefficients(W/ºC)-0.450
    Voc Temperature Coefficients(V/ºC)-0.350
    Isc Temperature Coefficients(A/ºC)+0.040
    NOCT Nominal Operating Cell Temperature(ºC)47±2
    Operating and Storage Temperature(ºC)-40~+85
    Standard Test Condition(STC)1000W/; AM 1.5;25+/-2ºC



    There are numerous factors you should first consider before you choose to buy solar panels and some of these factors are listed below:
    1, Firstly you should always research whether or not your desired location for the installation of solar panels has adequate levels of sunshine to make your investment worthwhile.
    2, You should decide on a sensible budget for your project before you buy your solar panels.
    3, Determine what capacity of electricity you require and if your selected budget can accommodate this.
    4, Who will install the solar panels that you buy? Do you require the additional services of an electrician or solar energy installer?
    5, Where will the solar panels you buy be fixed to your home? Is your home capable of supporting a solar energy system?

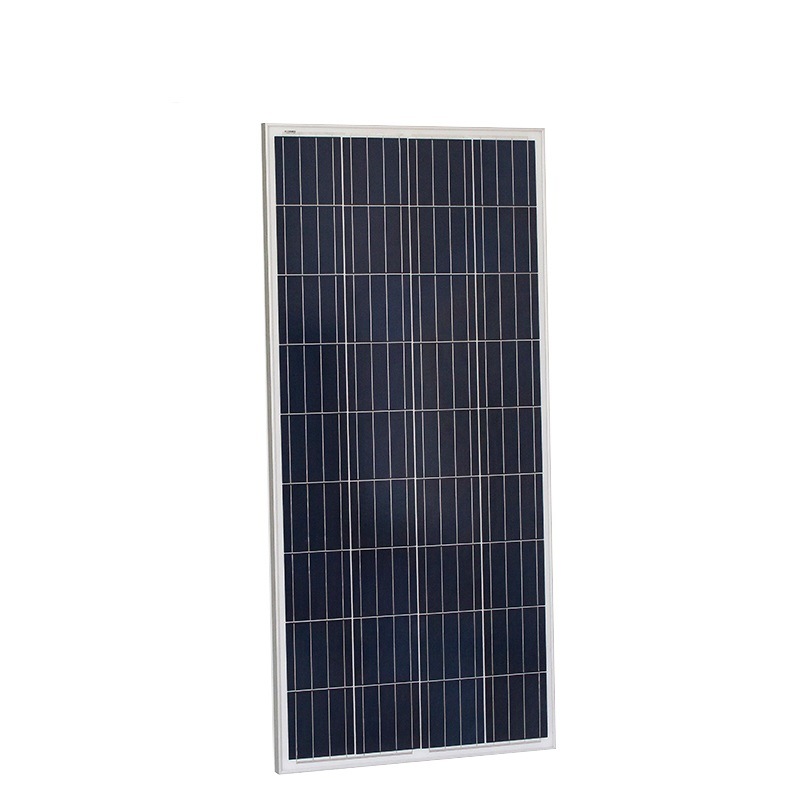

    Poly 150W Solar Module for DC 12V Solar System

    High efficiency poly solar cell with positive tolerance only
    International quality management system with 100% panel power and EL test before shipment
    Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
    Nearest shipment port: Shanghai
    Poly 150W Solar Module for DC 12V Solar System
