Recyclable 250 Watt 2nd Hand Solar Panels 1000V DC For Rural Electrification

Ask Lasest Price
Brand Name :	Yingli/Jinko
Certification :	ISO9001/CE
Price :	Negotiation
Payment Terms :	T/T、L/C、West Union
Supply Ability :	5000000 Watt/Watts per Month
Delivery Time :	Shipped in 7 days after payment

Add to Cart

Product Details
Company Profile

Recyclable 250 Watt 2nd Hand Solar Panels 1000V DC For Rural Electrification

1645x990x40 Size and Polycrystalline Silicon Material second hand solar panels

FEATURES

`Long Service Life
`High Efficiency Solar Cells
`Special Aluminum Frame Design
`High Transmission, Low Iron Tempered Glass
`Advanced Cell Encapsulation

APPLICATIONS

`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications

Solar Module Specifications(Poly 220W—260W)

Module		Type (60 series)
Encapsulation		Glass/EVA/Cells/EVA/TPT
Model		SNM-P220 (60)	SNM-P225 (60)	SNM-P230 (60)	SNM-P235 (60)	SNM-P240 (60)	SNM-P245 (60)	SNM-P250 (60)	SNM-P255 (60)	SNM-P260 (60)
Max power	Pm(W)	220W	225W	230W	235W	240W	245W	250W	255W	260W
Tolerance		+/-3%
Open circuit voltage	Voc(V)	36.0	36.6	36.6	36.8	36.9	37.1	37.2	37.2	37.3
Short circuit current	Isc(A)	8.19	8.24	8.34	8.46	8.55	8.65	8.72	8.78	8.83
Max. power voltage	Vmp(V)	29	29.5	29.5	30	30	30	30	30	30
Max. power current	Imp(A)	7.59	7.63	7.79	7.83	8.0	8.16	8.33	8.5	8.66
Practical Module Efficiency	ηc(%)	13.4%	13.7%	14.1%	14.3%	14.7%	15.0%	15.3%	15.6%	15.9%
Dimensions	(LWH)	1650×992×50mm
Net Weight	(kg)	19.5
Max. system voltage	(V)	1000V DC
Operate Temp. Scope		-40/+85℃
Resistance		227g steel ball fall down from 1m height and 120m/s wind
Warranty		Pm is no less 90% in 10 years and no less 80% in 25 years
STC		(Standard Test Condition: 1000W/m2, AM1.5, and 25℃)

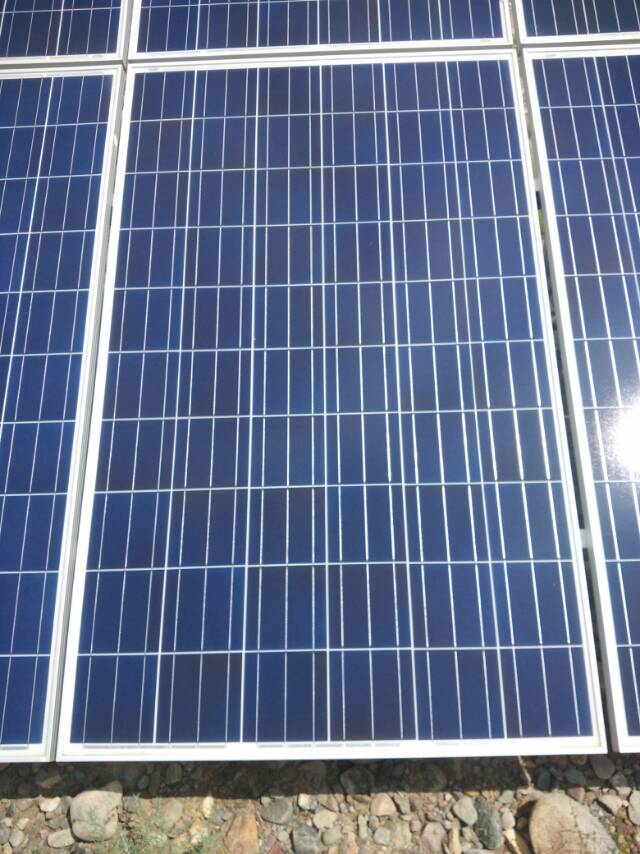

Product display :
