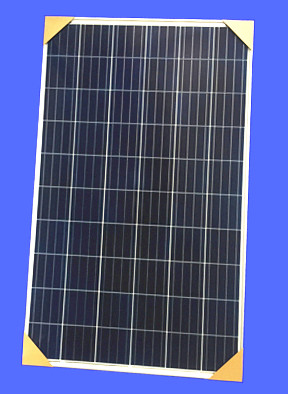

    Blue Polycrystalline Silicon Solar Panel , Solar Pv Modules For Industrial

    Ask Lasest Price
    Brand Name : Yingli/Jinko
    Certification : ISO9001/CE
    Price : Negotiation
    Payment Terms : LC/TT
    Supply Ability : 5000000 Watt/Watts per Month
    Delivery Time : Shipped in 7 days after payment
    • Product Details
    • Company Profile

    Blue Polycrystalline Silicon Solar Panel , Solar Pv Modules For Industrial

    Industrial Polycrystalline Solar Panel , 265W Polycrystalline Solar Module


    Here is the manufacturer of Solar Panels and you can get any models Solar Panel you need.Here is some for your reference.


    Maximum Power230W235W240W245W250W255W260W
    Module Efficiency14.10%14.35%14.66%14.96%15.30%15.60%16.00%
    Maxi Power Current7.62A7.72A7.895A8.033A8.23A8.31A8.47A
    Maxi Power Voltage29.5V30.2V30.4V30.5V30.4V30.6V30.7V
    Short Circuit Current8.31A8.59A8.718A8.781A8.81A8.84A8.93A
    Open Circuit Voltage36.8V36.8V37.2V37.2V37.6V37.7V37.8V
    Power Tolerance0~+5W
    Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/m²,Cell Temperature 25℃)
    Mechanical Characteristics
    Cell TypePolycrystalline 156x156mm,60(6x10)pcs in series
    GlassHigh Transmission,Low Iron,Tempered Glass
    FrameAnodized Aluminium Alloy
    Junction boxIP65/IP67 rated,with bypass diodes
    Dimension1640x990x35/40mm
    Output Cable4mm2(EU)/12AWG(US),1000mm²
    Weight19Kg
    Installation Hole LocationSee Drawing Above
    No.of Bypass Diodes3/6

    Features

    • High cell's efficiency with high quality silicon material for long term output stability and reliability
    • Rigorous quality control to meet highest international standards
    • High transmittance,low iron tempered glass cover with enhanced stiffness and impact resistance
    • Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
    • Unique frame design with high mechanical strength for easy installation
    • Advanced encapsulation material provide efficient protection from the severest environment conditions

    Applications

    • Solar home system, Solar power plant and Other Solar system

    Warranty

    • 10 years limited warranty on material and workmanship
    • 10 years with 90% output, 25years with 80% output
    • Blue Polycrystalline Silicon Solar Panel , Solar Pv Modules For Industrial

    Quality and Safety


    1. Rigorous quality control meets the highest international standards.

    2. High-transmissivity low-iron tempered glass, strong aluminium frame.

    3. Using UV-resistant silicon.

    4. IS09001/14001/CE/TUV/UL



    Payment Term


    T/T

    EXW

    30% T/T in advance, paid the balance before shipment

    FOB
    CFR(C&F)

    30% T/T in advance, paid the balance against copy of B/L

    CIF
    L/CL/C amount above 50,000 usd, we can accept L/C at sight
    West Union

    Amount lower than 5000usd

    West Union
    Delivery Time7~10days after receiving payment for one container
