Blue Multicrystalline Yingli Solar Panels TPT Back Sheet MC4 Compatiable

Ask Lasest Price
Brand Name :	Yingli/Jinko
Certification :	ISO9001/CE
Price :	Negotiation
Payment Terms :	T/T、L/C、West Union
Supply Ability :	5000000 Watt/Watts per Month
Delivery Time :	Shipped in 7 days after payment

Add to Cart

Product Details
Company Profile

Blue Multicrystalline Yingli Solar Panels TPT Back Sheet MC4 Compatiable

Wholesale Yingli 270w Solar Panel Price 265w 270watt 275w Polycrystalline Solar Panel 330w Factory Direct

Features:

1. Type of Connector: Compatiable Type MC4

2. No. of Draining Holes in Frame:16

3. High Transmission, Low Iron and 3.2mm Tempered Glass

4. EVA Encapsulation

5. White/Black Tedlar Back side

6. IP65 Rated Junction Box

7.Clear Anodized Aluminum Alloy Type 6063T5 Frame

Type Electric Characteristics :

Typical Electrical Characteristics
Solar cells :	Mono-Crysalline 156×156mm 60pcs.(6×10) ---3 bus bars
Max-power	255Wp	260Wp	265Wp	270Wp	275Wp	280Wp
Power Tollerance	0 to +6W
Voltage at Pmax (Vmp)	30.8V	30.9V	31.2V	31.4V	31.6V	31.8V
Current at Pmax(Imp)	8.28A	8.42A	8.50A	8.60A	8.70A	8.81A
Open-Circuit Voltage(Voc)	30.8V	30.9V	31.2V	31.4V	31.6V	38.8V
Short-Circuit Current(Isc)	8.96A	9.10A	9.19A	9.28A	9.40A	9.53A
Maximum system voltage(VDC)	1000(IEC), 600(UL)
Cell Efficiency	18.0%	18.3%	18.8%	19.0%	19.4%	19.7%
Moudule Efficiency	15.70%	16.00%	16.30%	16.60%	16.90%	17.20%
No. of Bypass Diodes (pcs.)	3
Max. Seriex Fues(A)	12A
Temperature coefficients of Pmax	-0.45%/ ℃
Temperature coefficients of Voc	-0.34%/ ℃
Temperature coefficients of Isc	0.05%/ ℃
Nominal Operating Cell Temperature	45±2℃
STC Conditions (1000W/mm ; 1.5 AM and 25℃ Cell temperature)
Mechanical Characteristics
Cable type,Cross-sectional area and Length	Φ=4mm*mm ,L=1000±5mm
Type of Connector	Compatible type MC4
Dimension A×B×C	1640×992×50mm (64.57×39.06×1.77 inch)
Weight	19.6kg(43.1lb)
No.of Draining Holes In Frame	16
Construction	Glass :High Transmission ,Low Iron,Tempered Glass 3.2mm Encapsulation : EVA Back side : White



Junction Box ( protection degree )	IP 65
Frame	Clear anodizod aluminum alloy type 6063T6 frame
Qualification Test Parameters
Dielectric Insulation Voltage	6000V DC max
Operating Temperature	-40℃to +85℃
Max load	5400 Pa
Hallstone Impact	25mm(1inch)at23mm/s(52mph)
Tire safety class	Class C
Packaging Configuration
Packaging Configuration	25pcs./box and 2pcs./box
Quantity of Big Box/Pallet	1 box/ pallet 1 boxes/pallet
Quantity of Small Box/Pallet		9 boxes/pallet
Loading Capacity	700pcs ./40'HQ 300pcs./20'GP

Product Pictures:

6x10 Stock Picture - 02.jpg

Quality and Safety :

1.Industry leading power output warranty, 25 year 80%, 10 year 90% power warranty and 10 year product warranty

2.ISO9001:2008 (Quality Management system) certified factory

3.Product Quality warranty & products Liability Insurance to guarantee and user' benefits

EN 6100-6-3:2007 ; EN 610-3-1:2007(IEC 61000-4-2:2008 IEC 61000-4-3:2008)

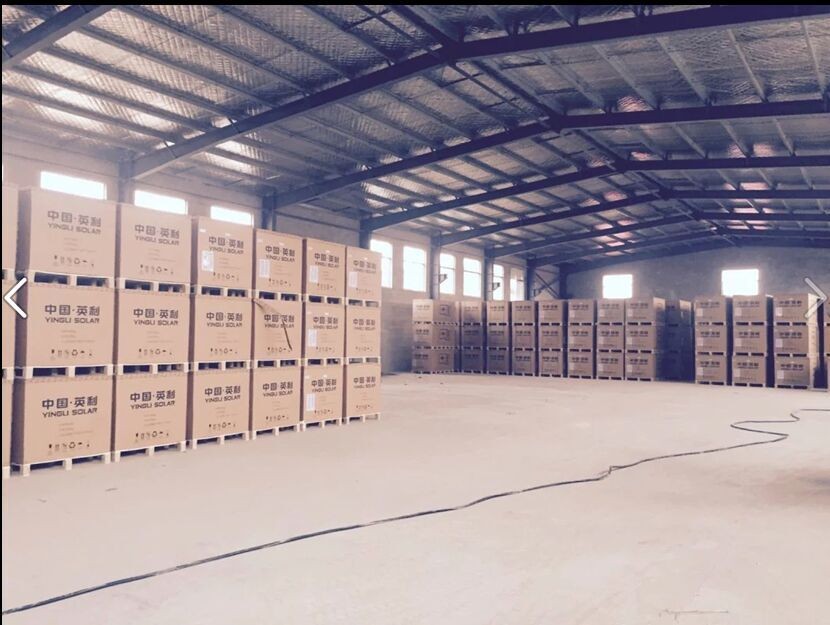

Packaging & Shipping

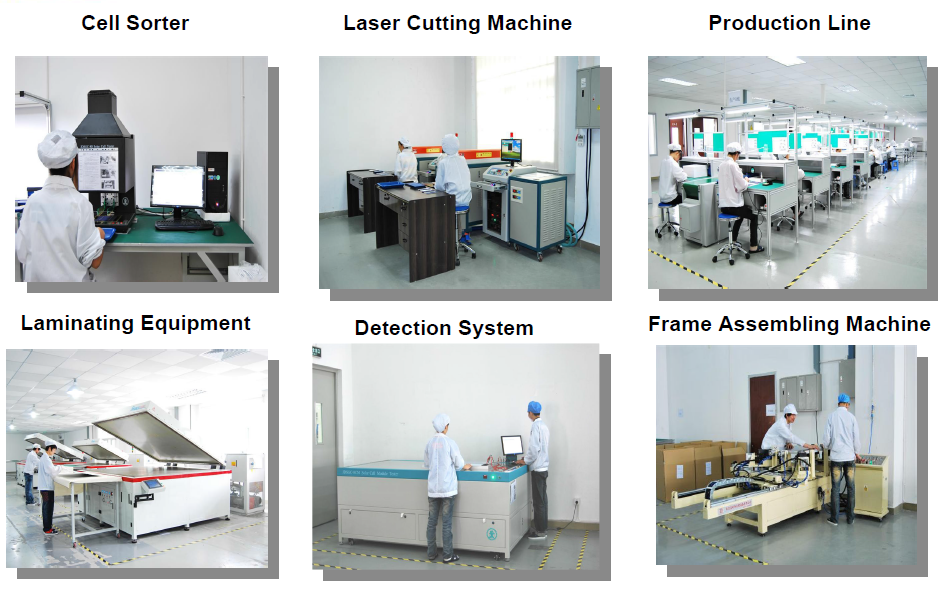

Production Line and Equipment

Topsky Energy is also specials collector for tier 1 solar modules, including Trina, Yingli, Hanwha,Jinko, LDK, Jetion,GCL,GPPV etc.


FAQ

• What kind of certification do you have?

--- Power from 3W to 310 with TUV,IEC61215/IEC61730,CEC,CE,PID,ISO

• What is the warranty of solar panels?

--- 5-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years

• Can you quote me the best price?

---We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
