Lightweight B Grade Solar Panels 164099040 Mm With Junction Box

Product Categories

Suzhou Jun Hui Import and export trade Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	Yingli/Jinko
Certification :	ISO9001/CE
Price :	Negotiation
Payment Terms :	T/T、L/C、West Union
Supply Ability :	5000000 Watt/Watts per Month
Delivery Time :	Shipped in 7 days after payment

Add to Cart

A Grade B Grade Solar Panel 250w Used Solar Panels For Sale, 250watt Solar Panel Kit

Product Description

Product Data

Electrical Characteristics
Module Type	HP-M250W-60P
Open Circuit Voltage (Voc)	37.75V
Optimum Operating Voltage (Vmp)	31.25V
Short Circuit Current (Isc)	8.83A
Optimum Operating Current (Imp)	8.00A
Module Efficiency	15.4%
Power Tolerance	0 - +3W
Maximum System Voltage	1000V DC (IEC) / 600 V DC (UL)
Working Temperature	-40°c to +85°c
STC: Irradiance 1000 W/m2, module temperature 25 °C, AM=1.5
Mechanical Characteristics
Solar Cell	Monocrystalline 156*156mm
NO.of cells	60(6*10)Pcs
Size	164099040mm
Weight	20KG
Front cover	3.2mm tempered glass
Frame	Anodized aluminum alloy

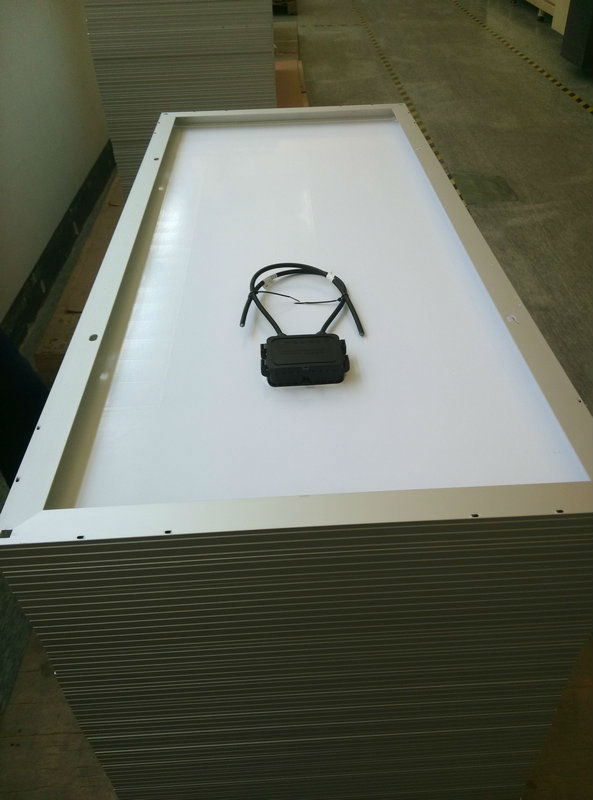

Junction Box	IP67/IP65 rated
Output Cables	4.0 mm2 (0.006 inches2),12AWG(UL) 900mm
Connectors	MC4
Temperature Characteristics
Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of Voc	-0.32%/K
Temperature Coefficient of Isc	0.046%/K

Product Detail

QQ20170909115024 QQ20170909115019 QQ20170909114957

QQ20170909115003 QQ20170909115012

Pruduct Feature

1.semi flexible solar panels adopts the highest efficiency cell, with efficiency up to 20% or higher,

which enable 25-30% higher power generation than the conventional PV modules at the same size.

2.By adopting the back contact technique,the cell can be coated with the flexible materials and finally forms the semi flexible solar panels

3.This kind of semi flexible solar panels can be widely used in the field of Electric Golf car, Patrol Car,

TravelTourism Car,Yacht,Roof Power generation,Backpack,Tent and so on.

4. High reliability with guaranteed +3% output power tolerance

Product Show

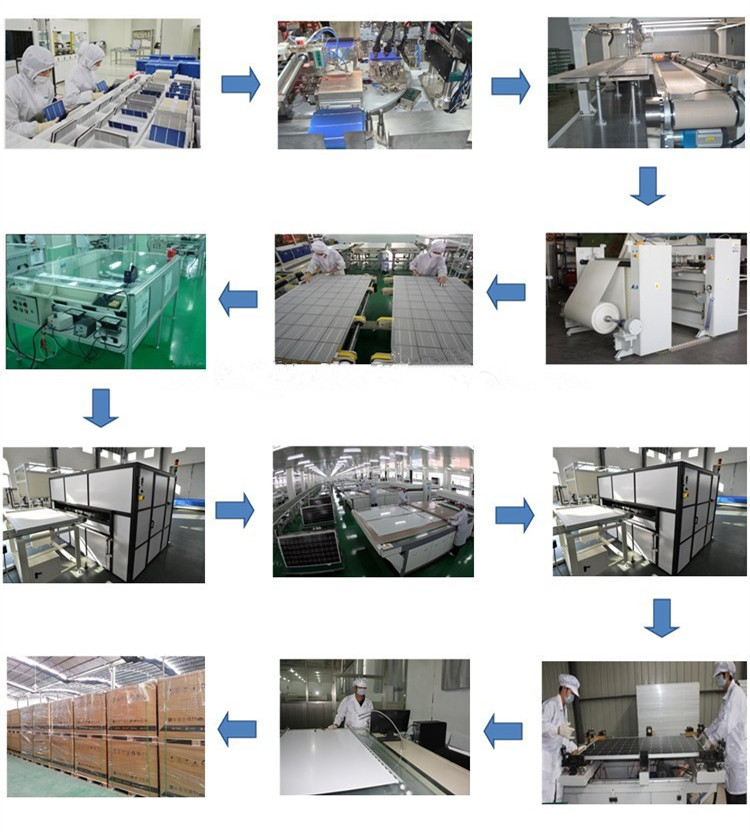

The Factory
