Used for off-Grid Solar System 300wp Polycrystalline Solar Panels
Features:
High conversion efficiency
Low power tolerance of 0~+3%
Low degradation under light exposure
Can withstand high wind-pressure, snow load and extreme temperature
Passing IEC 61215 5400Pa mechanical load test
Warranty and Certificate
10-year warranty on product materials and processing technology
Power output warranty: 10 years: 90%, 25 years: 80%
TUV, ISO 9001,IEC61215, IEC61730, CEC , CE, GMC, EMC etc.
Quality and Safety:
10-year warranty on product materials and processing technology
Power output warranty: 10 years: 90%, 25 years: 80%
ISO 9001: 2008(Quality Management System) certified factory
IEC61215, IEC61730, MCS CEC certified products
TUV, CE conformity
Applications
On-grid residential roof-tops
On-grid commercial/industrial roof-tops
Solar power plants
Off-grid system
Other on-grid applications

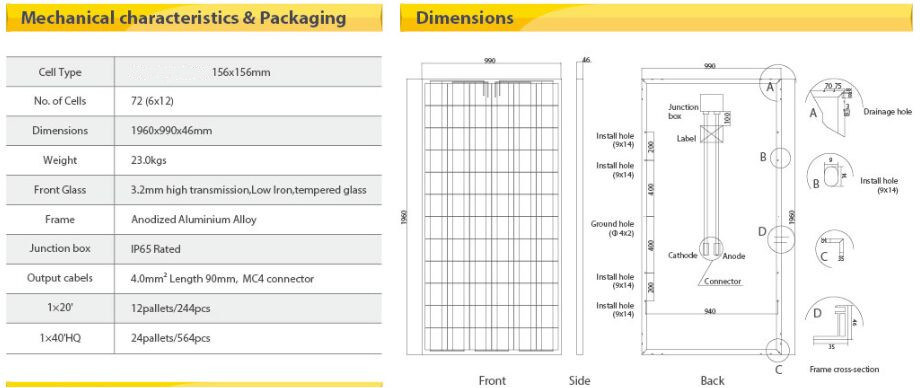

Specifications
| Model Type | ODA310-36- P | ODA300-36-P | ODA295-36-P | ODA290-36-P | ODA285-36-P | ODA280-36-P | ODA275-36-P | ODA270-36-P |
| Peak Power(Pmax) | 310 | 300 | 295 | 290 | 285 | 280 | 275 | 270 |
| Maximum Power Voltage(Vmp) | 37.72 | 37.42 | 37.25 | 37.08 | 36.92 | 36.98 | 36.72 | 36.4 |
| Maximum Power Current(Imp) | 8.22 | 8.02 | 7.92 | 7.83 | 7.72 | 7.59 | 7.49 | 7.42 |
| Open Circuit Voltage(Voc) | 44.67 | 44.08 | 44.4 | 44.32 | 44.05 | 44.31 | 44.24 | 44.17 |
| Short Circuit Current(Isc) | 9.05 | 8.58 | 8.47 | 8.37 | 8.26 | 8.1 | 8.01 | 7.94 |
| Cells Efficiency(%) | 18.23 | 17.64 | 17.35 | 17.05 | 16.75 | 16.46 | 16.21 | 15.88 |
| Module Efficiency(%) | 15.98 | 15.46 | 15.20 | 14.95 | 14.69 | 14.43 | 14.17 | 13.91 |
| Maximum System Voltage(V) | 1000 | |
| Maximum Series Fuse Rating(A) | 15 | |
| Power Tolerance | 0~+3 | |
| Pmax Temperature Coefficients(W/ºC) | -0.450 | |
| Voc Temperature Coefficients(V/ºC) | -0.350 | |
| Isc Temperature Coefficient (A ºC) | +0.040 | |
| NOCT Nominal Operating Cell Temperature(ºC) | 47±2 | |
| Operating and Storage Temperature(ºC) | -40~+85 | |
| Standard Test Condition(STC) | 1.000W/;AM 1.5;25+/-2ºC | |
SOLAR PANEL / PV MODULE:
1. Use A-grade solar cell with high efficiency;
2. High transmittance, low iron tempered glass with enhanced
stiffness and impact resistance;
3. Anodized aluminum alloy frame with high mechanical strength for
easy installation;
4. Anti-aging EVA and high flame resistant Back Sheet (TPT), to
provide long-life and enhanced cell performance;
5. Outstanding electrical performance under high temperature and
low irradiance conditions;
6.100% apply EL(electroluminescence) technology;
7.5 years limited warranty, 10 years limited warranty for 90% power
output, 25 years limited warranty for 80% power output;
8. With CE, ISO9001: 2008 certificate;
APPLICATIONS:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4.12V and 24V battery charging systems;
5. Other industrial and commercial applications;
