High Efficiency Solar Panels For Homes , Aluminum Alloy Plated
Oxidation Framworld.315Wp
Monocrystalline Solar Panel
Triple International Electrical Commission (IEC) test guarantees
long-term reliability
Excellent anti-PID performance
Double electroluminescence (EL) tests guarantee fault-free modules
Lower contact resistance and optimized soldered connections as well
as reduced grid breakage of cell conductor tracks through
double-printing technology
100% automated production facilities using state-of-the-art plant
technology
| Moduel | KL-300W-M | KL-305W-M | KL-310W-M | KL-320W-M | KL-325-M |
| Rated Maximum Power at STC | 300 | 305 | 310 | 320 | 325 |
| Open Circuit Voltage(Voc/V) | 45.20 | 45.35 | 45.45 | 45.82 | 46.48 |
| Maximum Power Voltage(Vmp/V) | 36.41 | 36.71 | 37.00 | 37.56 | 37.17 |
| Short Circuit Current(Isc/A) | 8.73 | 8.79 | 8.85 | 9.03 | 9.05 |
| Maximum Power Current(Imp/A) | 8.24 | 8.31 | 8.38 | 8.52 | 8.74 |
| Module Efficiency(%) | 15.48 | 15.73 | 15.99 | 16.51 | 16.77 |
| Power Tolerance | -0~+3% |
| Standard Test Condition(STC) | Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 |
PRODUCTS SPECIFICATION:
Quality and Safety
1. Rigorous quality control meets the highest international
standards.
2. High-transmissivity low-iron tempered glass, strong aluminium
frame.
3. Using UV-resistant silicon.
4. IS09001/14001/CE/TUV/UL
Warranties
1. 10 years limited product warranty
2. 15 years at 90% of the minimal rated power output
3. 25 years at 80% of the minimal rated power output
Technical date :
| Characteristics | Unit | 315W |
| Maximum Power (Pmax) | W | 315 |
| Power Tolerance | W | (0,+5) |
| Maximum Power Voltage (Vmp) | V | 36 |
| Maximum Power Current (Imp) | A | 8.75 |
| Open Circuit Voltage (Voc) | V | 43.2 |
| Short Circuit Current (Isc) | A | 9.62 |
| Module Efficiency (ηm) | % | 15.46 |
| Dimension of module | mm | 1950*992*40mm |
| Pmax Temperature Coefficient | %/C | -0.42 |
| Voc Temperature Coefficient | %/C | -0.3 |
| Isc Temperature Coefficient | %/C | 0.05 |
| Maximum System Voltage | VDC | 1000(TUV);600(UL) |
| Maximum Series Fuse Rating | A | 15 |
| Operating Temperature | C | -40~ +85 |
| NOCT | C | 45±2 |
| STC:1000W/m2.AM1.5 and 25C cell temperature, NOCT : Nominal
Operating Cell Temperature |
Temperature Coefficient:
| NOCT | 45°C±2°C |
| Temperature coefficient of Isc | 0.05%/°C |
| Temperature coefficient of Voc | -0.33%/°C |
| Temperature coefficient of Pmax | -0.44%/°C |
| Power Tolerance | 0/+3% |
| Working temperature | -40°C to 85°C |
Qualification Test Parameters:
| Temperature cycling range | -40℃~85℃ |
| Humidity freeze, damp heat | 85%RH |
| Static load front and back (e.g. wind) | 2400 pa (50psf) |
| Front loading (e.g. snow) | 5400 pa (113psf) |
| Hailstone impact | 25mm ( 1 inch) at 23 m/s (52mph) |
Features of solar panel
Polycrystalline or Monocrystalline silicon is a material consisting
of thin wafers that are cut from a silicon crystal which has grown
in several directions. This advanced texturing process provides
polycrystalline or moncrystalline solar panels with a higher power
output than amorphous panels of the same dimensions, and makes them
more cost and space-effective. These individual wafers are
assembled into panels that are covered by durable, weatherproof
tempered glass. Thanks to their efficiency and durability, these
solar panels require virtually no maintenance once installed.
Solar panel is super energy saving and makes people life happy
Solar panel helps us to take full advantage of solar energy which
is clean, inexhautible and pollution-free, and it converts sunlight
into electric. In this way, we can help people in remote areas
without mains supply and lack of electricity, and light up nights
and bring people hope there.
Application:
1, On industry building, commerce building and public buildings.
2, on steel structure workshop.
3, on roof of the residential building.
4, On mobile booth.
5, on agriculture and livestock facilities.
6, on sunshine house.
7, on water surface.
8, on brrack and post.
9, on the ground.
10, on railroad.
11, on public road.
12, on container box.

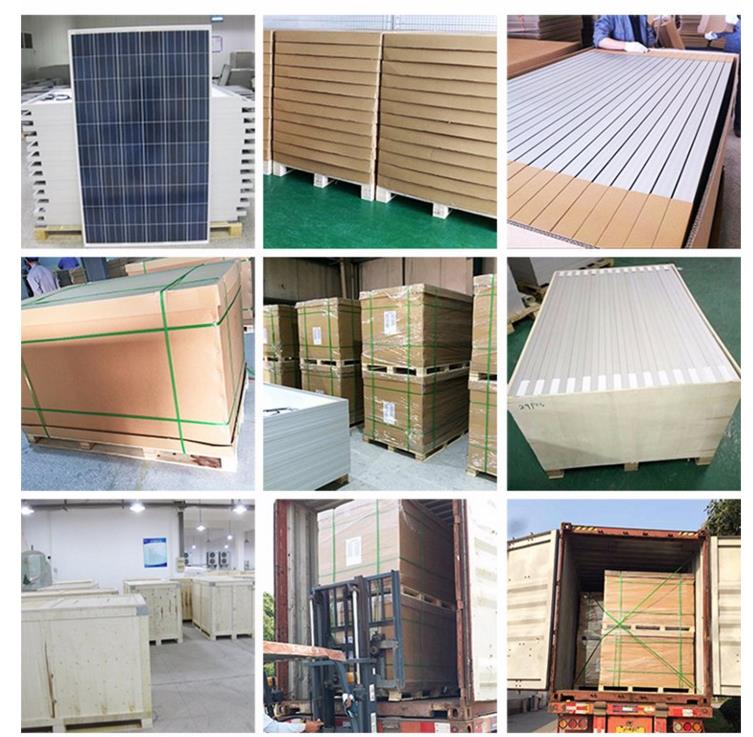

Packing:
Quality and Safety
1. Rigorous quality control meets the highest international
standards.
2. High-transmissivity low-iron tempered glass, strong aluminium
frame.
3. Using UV-resistant silicon.
4. IS09001/14001/CE/TUV/UL
Payment Term |
T/T | EXW |
30% T/T in advance, paid the balance before shipment |
| FOB |
| CFR(C&F) |
30% T/T in advance, paid the balance against copy of B/L |
| CIF |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight |
| West Union |
Amount lower than 5000usd |
| West Union |
| Delivery Time | 7~10days after receiving payment for one container
|
