    Lightweight 72 Cell Solar Panel , Crystalline Solar Modules VDC System

    Ask Lasest Price
    Brand Name : Yingli/Jinko
    Certification : ISO9001/CE
    Price : Negotiation
    Payment Terms : T/T、L/C、West Union
    Supply Ability : 5000000 Watt/Watts per Month
    Delivery Time : Shipped in 7 days after payment
    • Product Details
    • Company Profile

    Lightweight 72 Cell Solar Panel , Crystalline Solar Modules VDC System

    Polycrystalline Silicon Solar Panel 72 Cells 285w To 325w Industrial Home Application

    Electrical Data
    MONO200W
    Nominal peak power(Pmax)200Wp
    Maximum power voltage(Vmp)37.4V
    Maximum power current(Imp)5.35A
    Short-circuit current(Isc)5.68A
    Open circuit voltage(Voc)45.5V
    Optimized cell efficiency(η)18.60%
    Power tolerance: ±3%
    Limits
    Operating temperature-40°C to +85°C
    Maximum system voltage1000VDC
    Temperature and Coefficients
    NOCT48°C±2°C
    Number of cells and type of connection72,serial connection
    DimensionsLength:1580mm
    Width:808mm
    Height:35mm
    Net weight14.80kgs/pc
    Gross weight450kgs/ctn(28pcs/ctn) 33kgs/ctn(2pcs/ctn)
    Package dimension1635x1140x956mm 1598x838x88mm
    Container loading868PCS/40’GP 62PCS/PALLET
    372PCS/20’GP 62PCS/PALLET
    STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C
    Guaranteed Power Output
    Warranted Tolerance: ±5%
    15 year:90% of its nominal power rating
    25 year:80% of its nominal power rating
    Impact ResistanceCan bear the force that is generated by one 227g steel ball fall down from 1m height
    Warranty period10 years:Materials and workmanship defects
    CellsMonocrystalline silicon photovoltaic cell

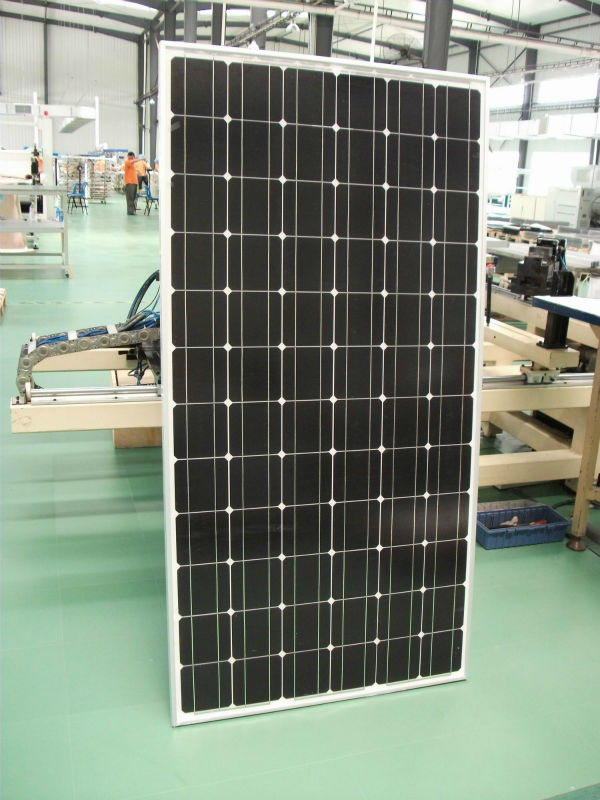

    200W MONO Solar panel

    250W mono solar pane (below)


    80-100w mono solar panel (below)


    200w mono solar panel (below)


    50w mono solar panel (below)


    FAQ


    Q1. Can I have a sample order for solar panel?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Sample needs 5-10 days, mass production time needs 15-30dyas for order quantity

    Q3. Do you have any MOQ limit for led light order?

    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for Soral panel?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q6. If you are directly manufacturer?


    Yes,we have factory for solar panel and many electronics
