22 Kilogram Stock Polycrystalline Solar Panel 1000 V DC Long Life Span

Product Categories

Suzhou Jun Hui Import and export trade Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	Yingli/Jinko
Certification :	ISO9001/CE
Price :	Negotiation
Payment Terms :	T/T、L/C、West Union
Supply Ability :	5000000 Watt/Watts per Month
Delivery Time :	Shipped in 7 days after payment

Add to Cart

Fully stocked polycrystalline solar panel 325w with long lifespan

Electrical Characteristics

Maximum Power at STC (Pmax)	325W
Optimum Operating Voltage (Vmp)	37.92V
Optimum Operating Current (Imp)	8.57A
Open Circuit Voltage (Voc)	46.98V
Short Circuit Curre nt(Isc)	9.01A
Module Eff iciency	16.75%
Operating Temperature	-40~85℃
Maximum Syst em Voltage	1000V DC
Maximum Serie s Fuse Rating	15A
Power Tolerance	0W~+5W

Mechanical Characteristics

Cell Type	Polycrystalline156 x 156mm(6 inches)
Number of Cells	72(6 x 12)
Dimensions	1956 x 992 x40mm
Weight	22kg
Front Cover	Tempered glass
Frame Material	Anodized aluminium alloy
Standard Packag ing (Modules per Pallet)	26PCS

Temperature Characteristics

Nominal Operating Cell Temperature	45±2℃
Temperature Coefficient of Pmax	-0.42%/℃
Temperature Coefficient of Voc	-0.30%/℃
Temperature Coefficient of Isc	0.06%/℃

325

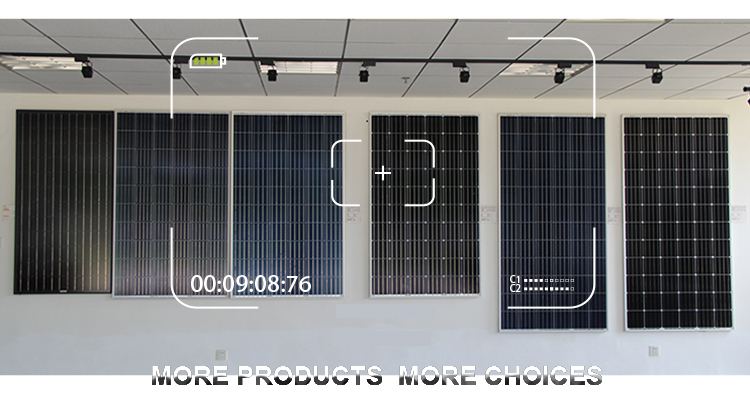

More Products

Project

Shipping Package
